Kitchen Drains

Floor Gullies

Gullies are height adjustable for ease of installation and incorporate removable gratings, odour traps, rodding ports and waste baskets, allowing full bore access. Outlets are vertical or horizontal.

Ideal for Commercial and Industrial Kitchens, Food and Beverage, Chemical, Pharmaceutical Industries, Building Exteriors, Parking Building and Under Ground Garages and more.

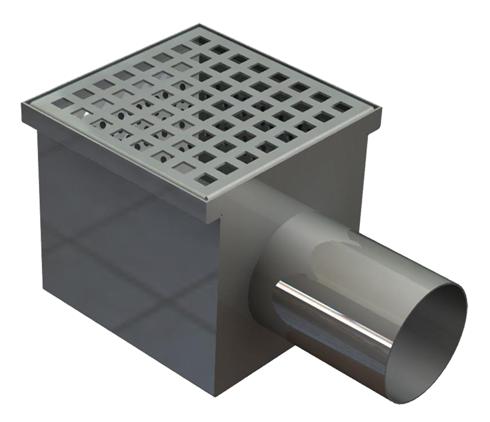

Floor Gully Vertical Outlet
150mm x 150mm







Floor Gully Horizontal Outlet
150mm x 150mm











45ยบ Rodding Eye
150mm x 150mm








Horizontal Gully Vinyl Type
150mm x 150mm GU1018






Vertical Gully Vinyl Type
150mm x 150mm






Vertical Floor Gully
Medium Duty VFGI

































Medium Duty Vertical Outlet Gully (mm)
Grating Size A B C D E F G
200mm x 200mm x 30mm 206mm 206mm 200mm 60mm - 100mm 75mm/110mm 176mm 30mm
300mm x 300mm x 30mm 306mm 306mm 300mm 100mm 75mm/110mm/160mm 276mm 30mm
400mm x 400mm x 30mm 406mm 406mm 300mm 100mm 110mm/160mm 376mm 30mm
450mm x 450mm x 40mm 456mm 456mm 300mm 100mm 110mm/160mm 426mm 30mm

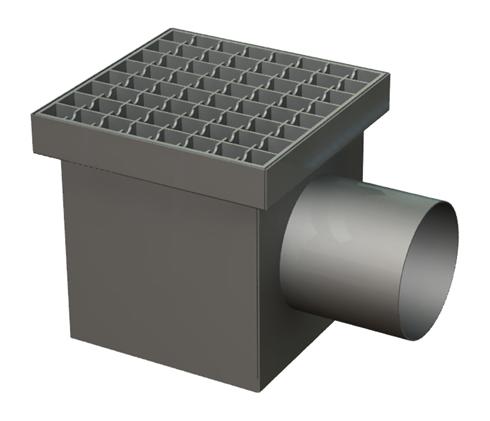

Horizontal Floor Gully
Medium Duty HFGI


Medium Duty Horizontal Outlet Gully (mm)
Grating Size A B C D E F G
200mm x 200mm x 30mm 206mm 206mm 200mm 75mm - 100mm 75mm/110mm 176mm 30mm
300mm x 300mm x 30mm 306mm 306mm 300mm 100mm 75mm/110mm/160mm 276mm 30mm
400mm x 400mm x 30mm 406mm 406mm 300mm 100mm 110mm/160mm 376mm 30mm
450mm x 450mm x 40mm 456mm 456mm 300mm 100mm 110mm/160mm 426mm 30mm

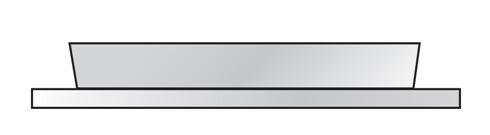

Lids

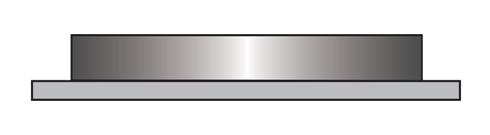

Tile   Solid



Additional Gully Technical Diagram Specifications


btn01 btn02
btn03 btn04
btn05 btn06






Kitchen Drains

Channels
Drainage Channels are designed with a built in fall and a range of edge profiles to accommodate all types of floor finishes. Anchors and levelling bolts are provided to ease installations. Lengths are only limited by transportation logistics.

The excellent smooth surface finish of Stainless Steel provides a self cleaning velocity for liquids at very shallow gradients. The self cleansing velocity is 0.75 m/s. Velocities below the figure require manual flushing.

Widths of channels will depend on the splash area below discharge equipment or appliance and should be a minimum of 200mm wide overall for wash down installations.

The discharge of the drainage channel to the flow rate capacity of the outlet gully.

Discharge capacities of both channel and gully will be reduced when conveying water borne solids. Typical gradients are 1% (1:100) for liquid waste 2% (1.50)
for water borne solids.

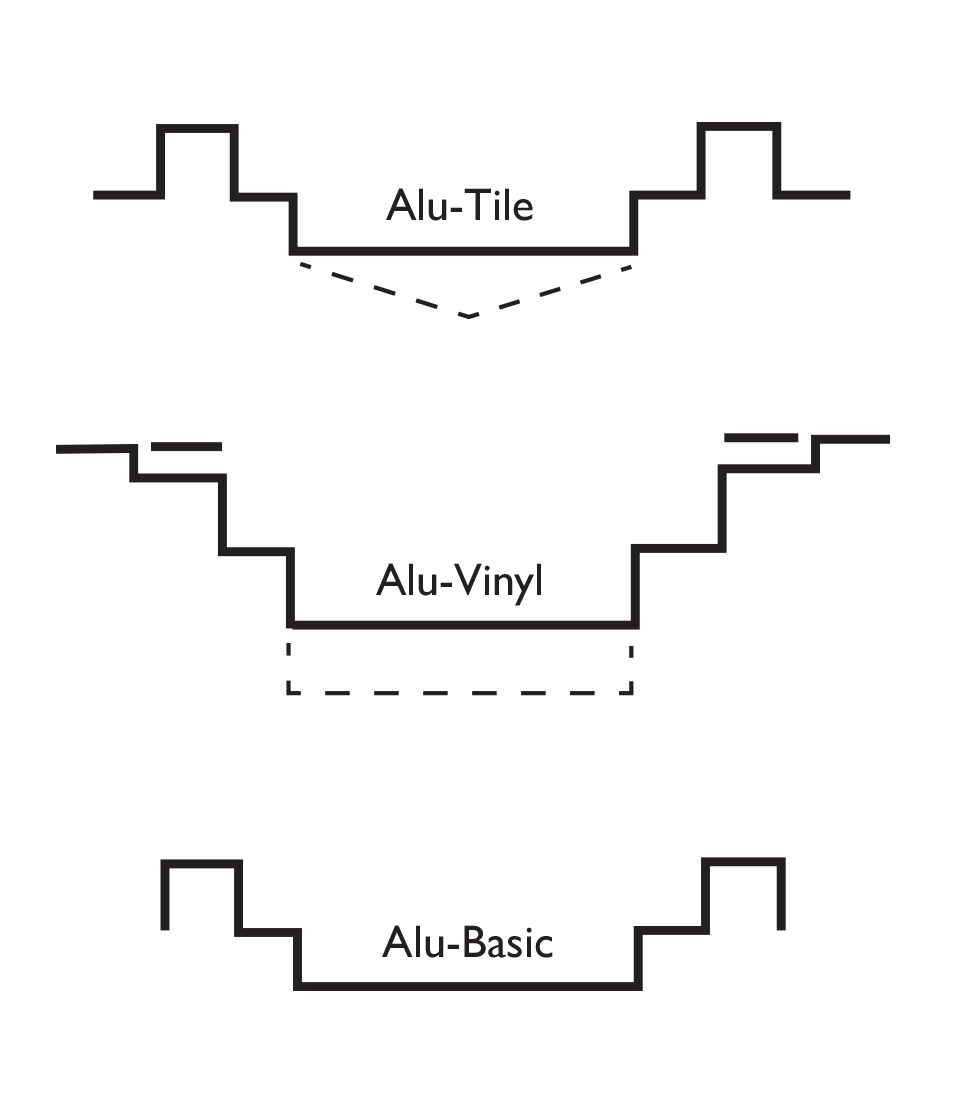

The channel edge details will depend on the floor finish, examples being tile, resin or vinyl. Channels can be designed to provide vinyl one side and resin or tile on the other side.

For applications where heavy loads and / or thermal shock are anticipated, an expansion frame around the perimeter is recommended.


The expansion frame is supplied factory tack welded to all profiles.

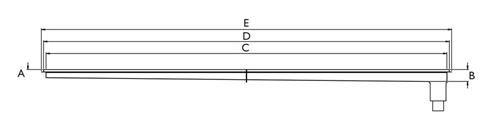

  Horizontal Channel 1100

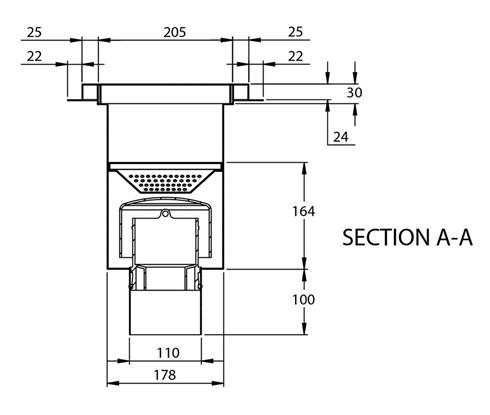

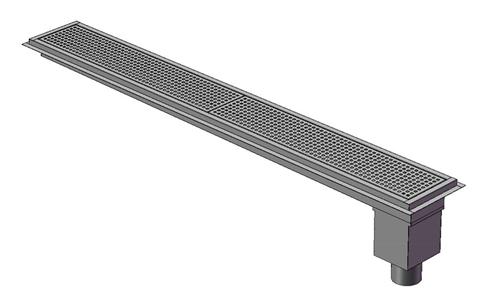

Vertical Channel 1001


  1000x200x1001 2000x200x1001 4000x200x1001 5000x200x1001
A 83mm 83mm 83mm 83mm
B 90mm 100mm 120mm 130mm
C 1004mm 2007mm 4012mm 5015mm
D 1054mm 2057mm 4162mm 5165mm
E 1098mm 2101mm 4016mm 5109mm
F 205mm 205mm 205mm 205mm
G 299mm 299mm 299mm 299mm



Cold Store Shower Channels

Aluline manufacture a range of stylish stainless cold store channels to suit modern bathrooms and public wet areas. Made from durable 304 Stainless Steel, they are available in lengths from 300mm to 1200mm with standard grate patterns to choose from. We are sure you will be impressed with the overall quality and visaul appeal of our shower channels.

Channels drainage systems for concrete floors and tiled floors. A built in fall of 1:200 standard, but falls of 1:100 or other specified falls can be built in at no extra cost. Constant depth supplied for depth restricted area.

A lower cost version with a 110mm spigot and bottle trap is suitable for changing areas of kitchens requiring a floor rate of less than 1.0 litres per second.

Drain Outlet Type  - Linear Channel Drains
Suitability Floor Finishes  - Screened Floors, Titles Floors.
Outlet Angle  - Vertical / Horizontal.
Caps / Grate Material  - Stainless Steel.
Body Material  - Stainless Steel.


Floor Channel 500AV



Channel Profile - Vinyl & Tiled Floor

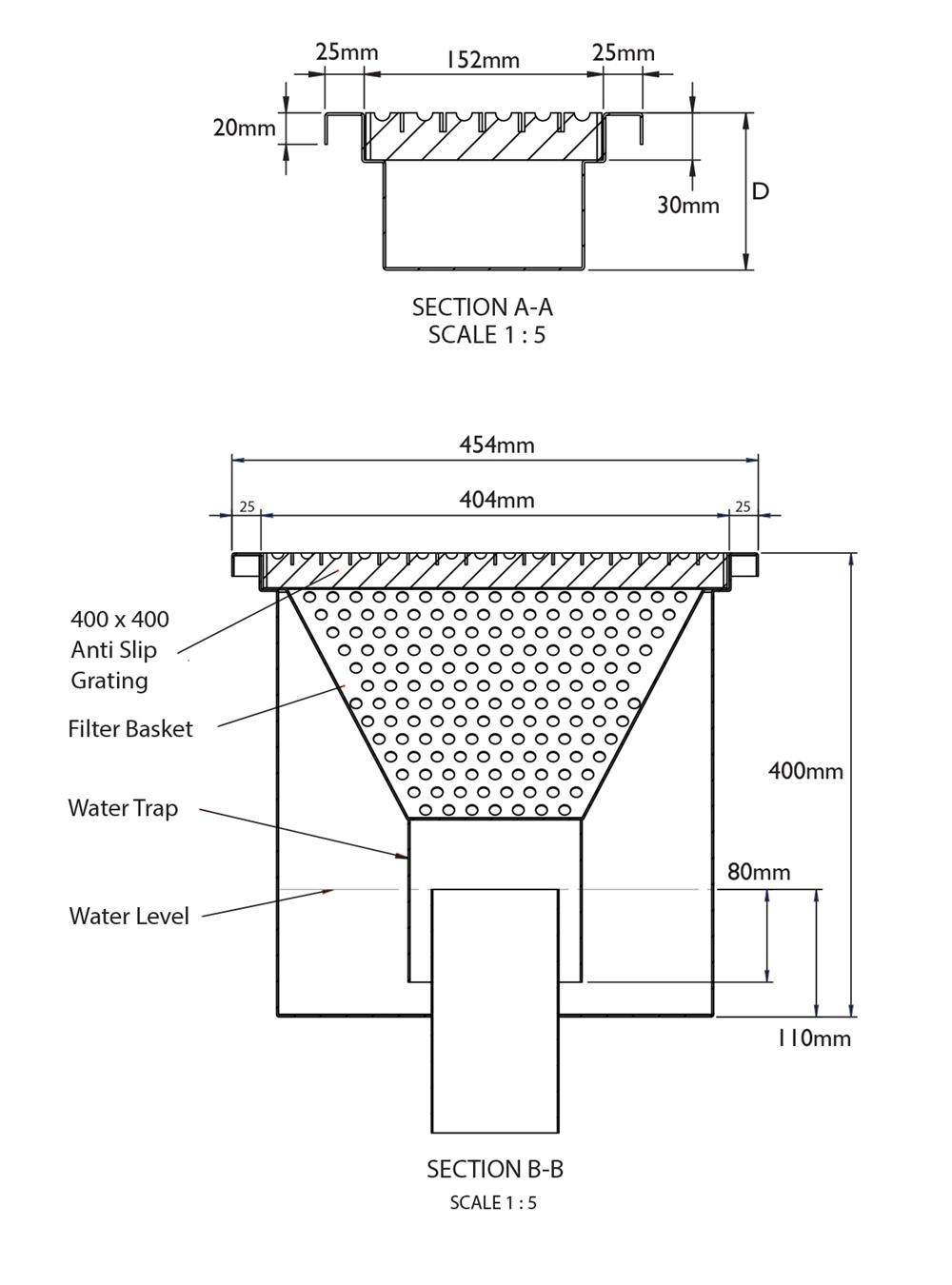

90° 18m x 7m Channel



Gutter Depth Legend
Location Gutter Depth (D)
A 60
B 149
C 183

Additional Channel Technical Diagram Specifications
btn07 btn08
